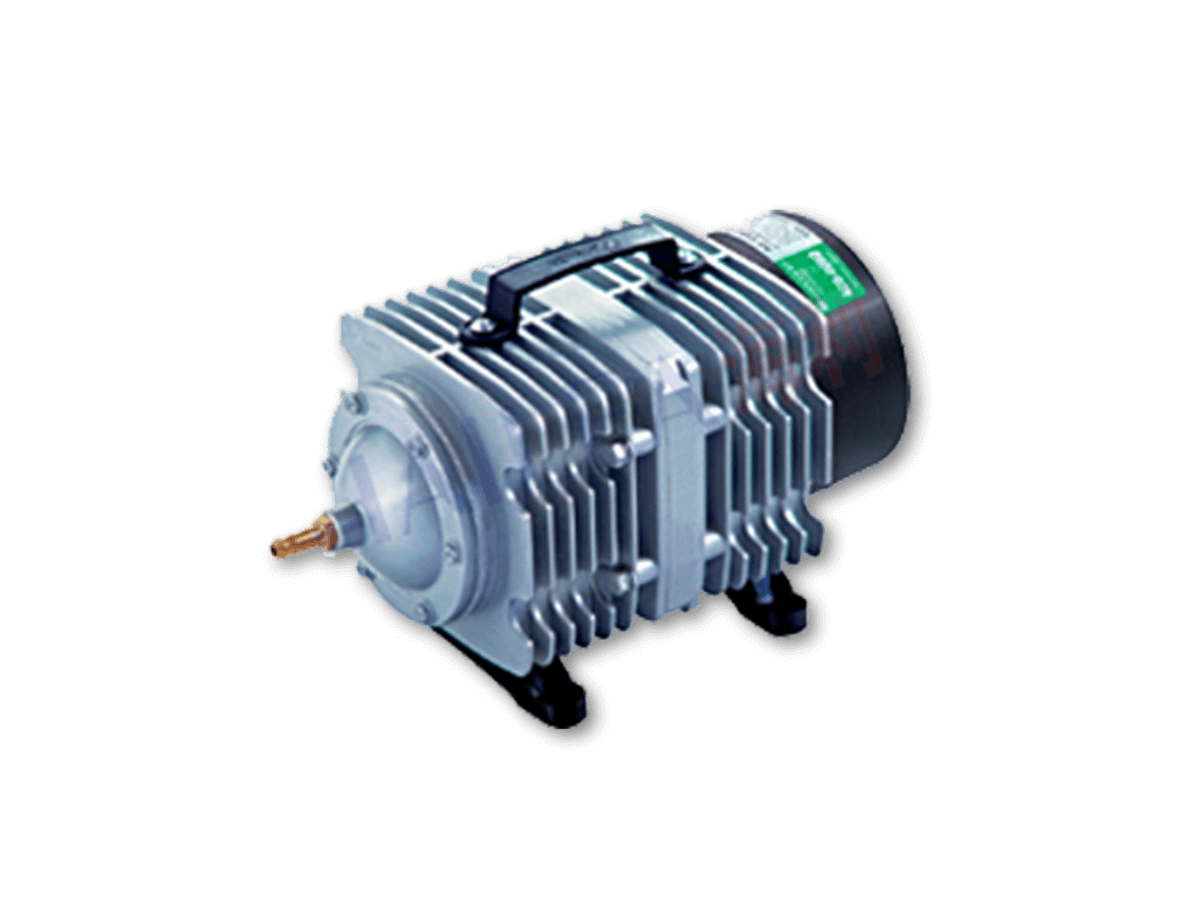

Compressor 120 l/min, oil -free
plus VAT Shipping costs will be charged at the checkout
ACO-009d
Piston compressor
Oil -free process air for your laser!
This model is a compressor
with a conveyor output of 120 l/min and a maximum pressure of 0.35 bar (35 kpa).
The compressor does not need oil and is otherwise maintenance -free.
A cold regulator (C14) is pre -assembled for the ellectric connection. The compressor can be connected to a cold device cable at a Schuko socket.
Scope of delivery:
- 1x compressor ACO-009D
- 1x connection adapter 1/4 "> Santant
- Operating instructions
Technical data:
|
Operating voltage
|
230V AC 50Hz |
|
Electricity |
Max. 500mA |
|
Power consumption |
112 W |
|
|
|
|
Funding |
120 l/min |
|
Conveying pressure |
Max. 0.35 bar |
|
Air connection |
1/4" |
|
Noise |
<69 DBA |
|
Ambient temperature |
-10 to 60 ° C |
|
Max. Operating temperature |
80 ° C |
|
|
|
|
Weight |
4.7 kg |
|
Dimensions W x H X T |
280 x 147 x 170mm |
Delivery time of 3-5 working days
