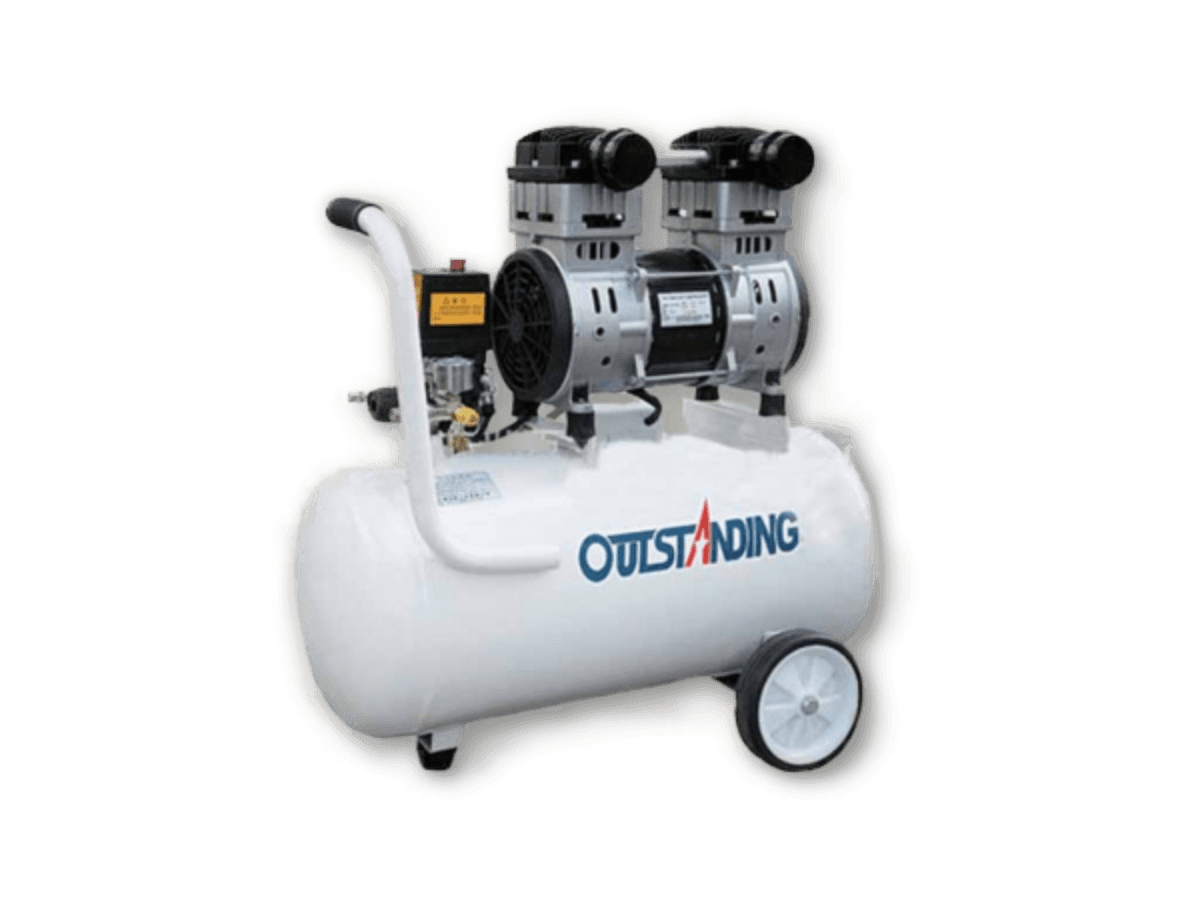

Quiet compressor 2200W, 50 liters, oil -free
OTS-980*2
Piston compressor with 50 liter tank
Oil -free process air for your laser!
This compressor has a very pleasant running and therefore does not interfere with the laser machine. With a sound pressure of> 68dba, this compressor is one of the very quiet representatives.
The 50 liter tank is automatically filled with compressed air at 7 bar. The funding volume and dimension of
S tanks allow the operation of several laser machines on this compressor or a machine, which mainly cuts with a lot of process air.
The compressor does not need oil and is otherwise maintenance -free.
Scope of delivery:
- 1x compressor ots-980x2-50l, 1x pressure reducer
- 1x hose speed for 6mm compressed air hose
Technical data:
|
Operating voltage |
230V AC 50Hz |
|
Electricity |
Max. 10a |
|
Power consumption |
2200 W |
|
|
|
|
Funding |
180 l/min |
|
Conveying pressure |
Max. 7 bar |
|
Air connection |
1/4 " / hose speed d = 6mm |
|
Noise |
<68 dba |
|
Ambient temperature |
5 to 40 ° C |
|
Max. Operating temperature |
70 ° C |
|
Air tank |
50 L |
|
Weight |
38 kg |
|
Dimensions W x H X T |
680 x 330 x 550mm |
